About this Item

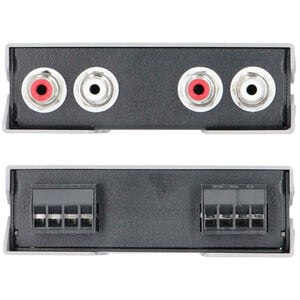

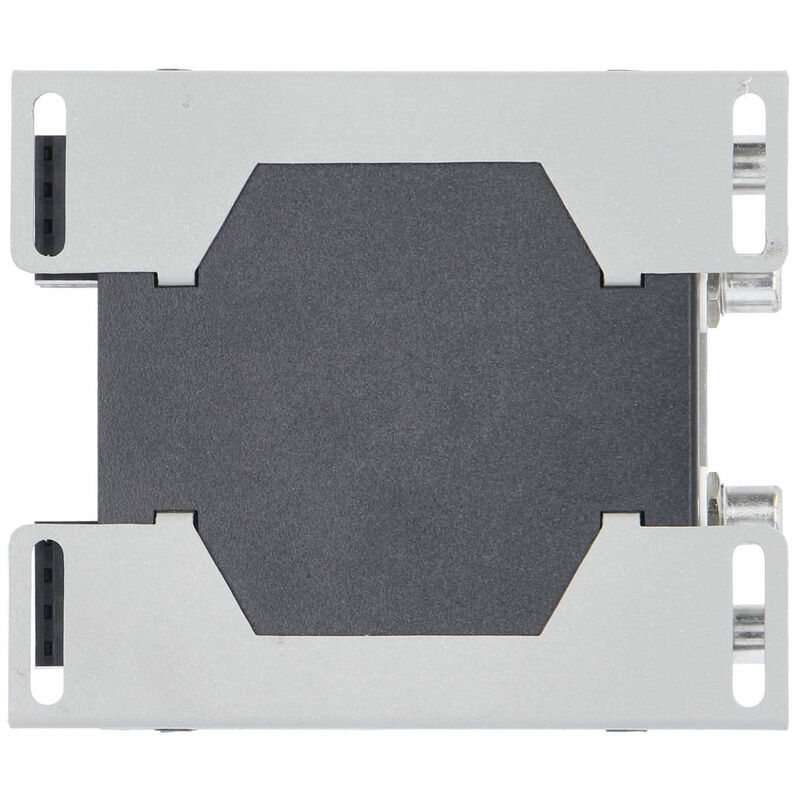

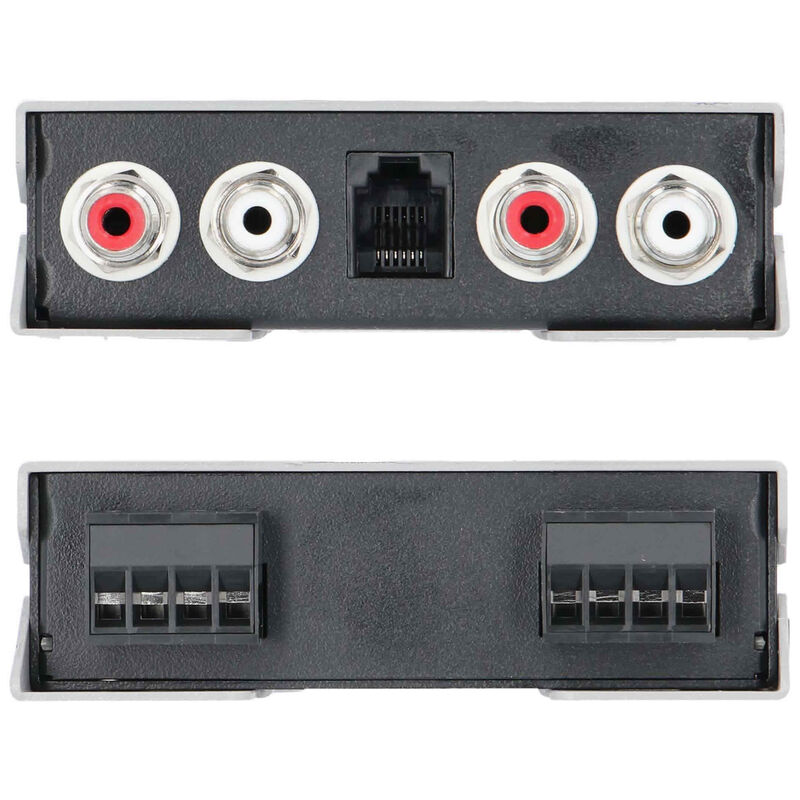

Metra 4CH Active Line Output Converter
This 4-channel LOC has universal applications and enables installers to add aftermarket amplifiers to OEM source units to make factory systems sound great. This premium product features incredible input power capabilities, a load selector, variable gain controls with clipping indicators, enhanced output controls, selectable ground isolation, and noise isolation countermeasures. This product is ideal for adding amplifiers to an audio system that does not have RCA outputs or when replacing a factory radio and retaining the factory amplified system. It provides a pure, noise-free signal for any type of audio system.
Features:
- 4-channel: 2 in, 4 out
- Max input level: 20V / 100W @ 20K Ohm
- Operating voltage: 9V-16V
- Trigger selection: REM / DC / AUDIO
- Remote Output Rating 500mA
- Turn on trigger (DC): 3V-7V
- Output max @13.8V: 9.5V RMS
- Input impedance selection: 20 / 60 / 20k Ohm
- Ground selection: GND / ISO / 200 Ohm
- Independent Front/Rear Gain adjustment: - 28dB to +1dB
- Input sensitivity: 0.5V-20V
- Signal to noise: >110dB @ 6.4V output
- THD+N (Total Harmonic Distortion): <0.01%
- Frequency response: 20Hz-20kHz
Accessory Type
Line Output Converter
Description
4-channel: 2 in, 4 out Max input level: 20V / 100W @ 20K Ohm Operating voltage: 9V-16V Trigger selection: REM / DC / AUDIO Remote Output Rating 500mA Turn on trigger (DC): 3V-7V Output max @13.8V: 9.5V RMS Input impedance selection: 20 / 60 / 20k Ohm Ground selection: GND / ISO / 200 Ohm
Dimensions
4.1(w) X 1.4(h) X 7.0(d)
Shipping Weight
1 lb
