MRCOOL DIY 5th Gen 36,000 BTU 230V Single-Zone Smart Ductless Mini-Split Air Conditioner with 25 ft. Install Kit for up to 1550 Sq. Ft.

MODEL:

DIY36HPWM230

MPN:

DIY-36-HP-WM-230D25-0
5 out of 5 Customer Rating
MRCOOL DIY 5th Gen 36,000 BTU 230V Single-Zone Smart Ductless Mini-Split Air Conditioner with 25 ft. Install Kit for up to 1550 Sq. Ft. is rated 4.9 out of 5 by 27.
  • y_2026, m_4, d_30, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_27
  • loc_en_US, sid_DIY36HPWM230, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_pcrichardson
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
or
$629/Month
Suggested monthly payments with 6-month special financing. Offer good now through 12/31/26.
Show Me How

BUY NOW, PAY LATER WITH . See if you qualify


Available online Only!

Delivery & Pickup Options

Delivery to 43215 Change
Parcel Delivery
Ships directly from the supplier. Allow additional days for processing. FREE
Learn More

About this Item

MRCOOL DIY 5th Gen 36,000 BTU 230V Single-Zone Smart Ductless Mini-Split Air Conditioner with 25 ft. Install Kit for up to 1,550 Sq. Ft.

Experience next-generation comfort with the MRCOOL DIY36HPWM230 --- a 5th Generation smart ductless mini-split system engineered for effortless DIY installation and year-round climate control. Designed for spaces up to 1,550 square feet, this powerful 36,000 BTU unit operates on 230V and delivers professional-grade heating and cooling without the need for a professional HVAC technician.

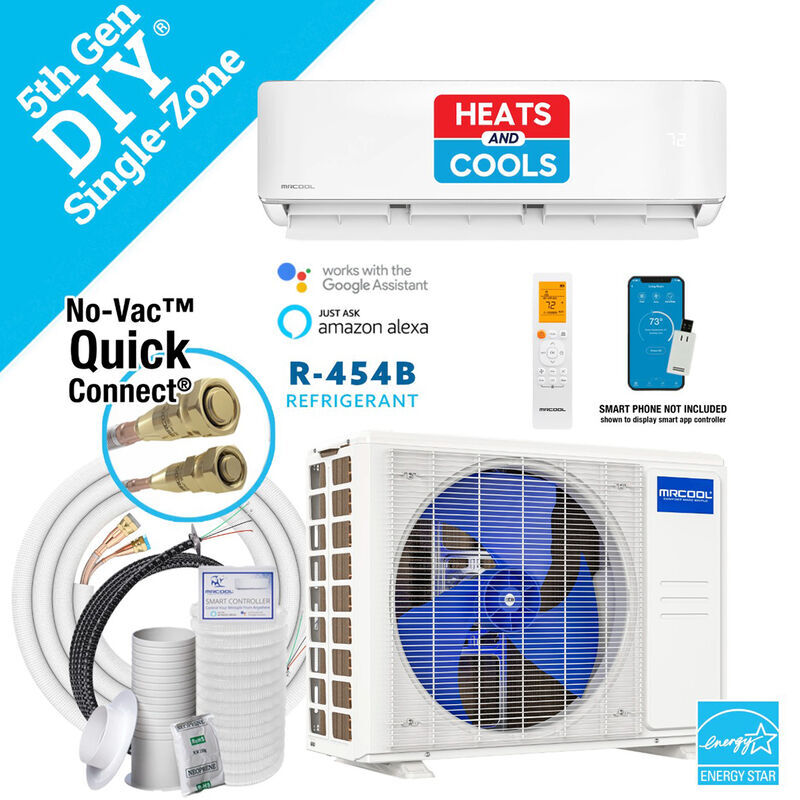

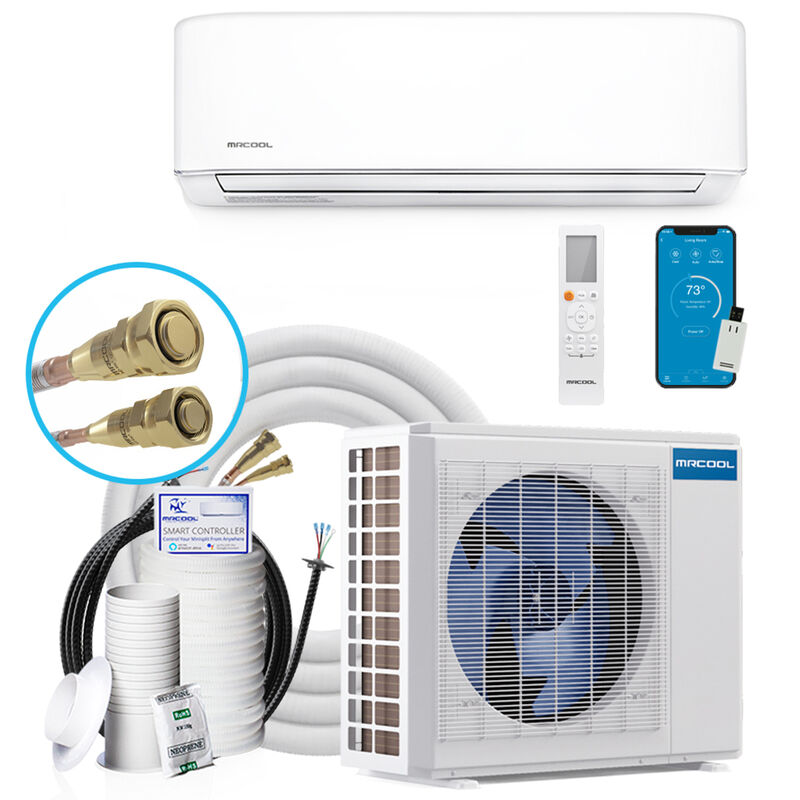

MRCOOL DIY 5th Gen 36,000 BTU 230V Single-Zone Smart Ductless Mini-Split Air Conditioner with 25 ft. Install Kit --- indoor and outdoor units shown.
Built for DIY. Engineered for Performance.

The MRCOOL DIY 5th Generation mini-split was designed from the ground up to be installed by a homeowner --- no special tools or HVAC certification required. The pre-charged 25 ft. QuickConnect line set snaps together quickly and securely, eliminating the need for a vacuum pump or refrigerant charging equipment. Complete your installation in a few hours with basic tools, backed by step-by-step instructions and video tutorials every step of the way.

  • 36,000 BTU cooling and heating capacity
  • 230V operation for larger space performance
  • 25 ft. pre-charged QuickConnect line set included
  • Covers spaces up to 1,550 square feet
  • Single-zone smart system with Wi-Fi control
  • No vacuum pump or refrigerant tools required
  • Wall sleeve and mounting hardware included
  • Detailed installation guide and video support available
  • Intertek-tested and certified pre-charged valve system
Smart Home Ready --- Control From Anywhere

The DIY36HPWM230 connects to the MRCOOL Smartphone app, giving you full control from your smartphone, tablet, or smart home device. Compatible with Amazon Alexa and Google Assistant, you can adjust temperature, fan speed, and operating modes with a simple voice command --- whether you're at home or away.

  • Control your MRCOOL DIY anywhere
  • Amazon Alexa and Google Assistant compatible
  • Schedule, monitor, and adjust settings remotely
  • Includes wireless remote control for local operation
Reliable Heat --- Even in Extreme Cold

Unlike traditional air conditioners, the MRCOOL DIY 5th Gen heat pump delivers reliable warmth even when outdoor temperatures plunge. The system's advanced cold-climate inverter technology maintains heating output in challenging weather conditions, providing true year-round comfort for large living spaces, open floor plans, and more.

  • Heat pump performance in low outdoor temperatures
  • Inverter-driven compressor for consistent output
  • Multiple operating modes: Cool, Heat, Fan, Dry, Auto
  • Follow Me remote sensing for precision comfort
Year-Round Comfort

This heat pump system provides both powerful cooling in summer and efficient heating in colder months. The advanced inverter compressor technology adjusts output based on actual demand, saving energy and maintaining consistent comfort without the temperature swings of traditional systems --- ideal for large open spaces up to 1,550 sq. ft.

ENERGY STAR Certified Efficiency

Earn savings every month with an ENERGY STAR certified system that consumes significantly less electricity than conventional systems. The 5th Gen's intelligent inverter technology continuously optimizes energy usage to reduce utility bills without sacrificing comfort, making it an ideal long-term investment for whole-room climate control.

Ultra-Quiet Operation

Enjoy virtually silent performance with a whisper-quiet indoor sound level that lets you sleep, work, or relax without disruption. Whether installed in a living room, master bedroom, open-concept space, or home studio, the MRCOOL DIY 5th Gen operates discreetly in the background so comfort never comes at the cost of peace and quiet.

Key Specifications
  • Model: DIY36HPWM230
  • Cooling Capacity: 36,000 BTU
  • Voltage: 230V
  • Coverage Area: Up to 1,550 sq. ft.
  • Line Set Length: 25 ft. pre-charged included
  • Zone Configuration: Single-Zone
  • Certification: ENERGY STAR
  • Connectivity: Wi-Fi, Alexa, Google Assistant
  • Refrigerant: R-454B
  • Operating Mode: Heat Pump (Heating & Cooling)
  • Generation: 5th Gen DIY Series
  • Installation: No vacuum pump or refrigerant tools required
The Smart Choice for Efficient, Large-Space Comfort

Whether you're cooling a large living area, heating an open-concept floor plan, or managing the climate across a spacious home addition or studio, the MRCOOL DIY36HPWM230 delivers professional-grade performance at a fraction of the installation cost. With its 36,000 BTU output, ENERGY STAR efficiency, and smart home compatibility, this is the mini-split system built for today's homeowner. No pros, no pressure --- just you and total comfort.

PDF Icon Energy Guide
PDF Icon Installation Instructions
PDF Icon Owners Manual
PDF Icon Specifications Sheet
PDF Icon Warranty
Product Height
14.25 Inches
Product Width
49.57 Inches
Product Depth
11.1 Inches
Product Weight (lbs.)
48.72 Lb(s)
Compressor Height
31.89 Inches
Compressor Depth
16.14 Inches
Compressor Width
37.24 Inches
Compressor Weight
152.12 Lb(s)
Color
White
Series
DIY 5th Gen
Number of Zones
1 Zone
Mount Type
Wall Mount
Coverage Area (Sq. Ft.)
1550 Sq. Ft.
Total Heating BTU
36000 BTU
Total Cooling BTU
36000 BTU
No. of Air Flow Directions
-
Moisture Removal (Pints/hr.)
-
Max Indoor Noise Level (dBA)
55.5 dBA
Outdoor Noise Level (dBA)
60.5 dBA
Number of Line Set
1
Line Set Length (Ft.)
25 Ft
Leakage Detection
Yes
Heat Pump
Yes
CFM
-
Washable Filters
-
Additional Features
-
Heat/Cool
Yes
WiFi Connected
Yes
Smart Features
App Controllable, Status Monitoring & Alert, Works with Voice Assistant
Works with
Amazon Alexa, Google Assistant
Cooling Speeds
5
Number of Fan Speeds
5
Programmable Timer
Yes
Sleep Mode
Yes
Remote Control
Yes
Remote Control Included
Yes
Energy Star Rated
No
Energy Efficiency Ratio (EER)
8.5
Energy Star Approved
-
Seasonal Energy Efficiency Ratio (SEER)
18
Estimated Electricity Use (kW/yr)
-
Estimated Yearly Energy Cost ($)
-
Power Source
230/208V-60Hz-1 Phase
Amperage (A)
35 Amps
Voltage (V)
230 Volts
Refrigerant Type
R-454B
AHRI Certified
Yes
ETL Listed
Yes
UL Listed
Yes
Warranty Terms - Parts
60 Month(s)
Warranty Terms - Labor
-
Compressor Warranty (Months)
84
